Google sign-in, Sheets and Drive links

AEVU uses Google in three separate ways. They never mix.

1. Sign in with Google. Proves who a person is. It reaches no files and opens only an account the person has already linked from their Profile. It never matches by email address and never creates an account.
2. Data consent. A person's own access to Google files (drive.file only: files they pick in Google's Picker, or files AEVU creates for them). It signs nobody in.
3. Sheets import, Drive links and Sheets export built on that consent.

Who does what

Step	Who
Create the Google OAuth client, consent screen, Picker key; set them on the server	Platform operator (AEVU), once for the whole platform
Allow Google for the organisation and workspace	Organisation Owner/Admin (Organization → Integrations); workspace admin (workspace switches)
Connect a Google account	Each person, for themselves

Nothing for you to paste

Organisation and workspace admins never enter Google keys. If Connect my Google account is missing or says Google isn't set up, the platform operator has not configured it yet (integration.notConfigured).

For the platform operator: Google Cloud setup

Do this once per deployment, in the Google Cloud console.

1. Project and APIs

1. Create or choose a Google Cloud project.
2. Go to APIs & Services → Library and enable Google Sheets API, Google Drive API and Google Picker API.

2. OAuth consent screen

1. APIs & Services → OAuth consent screen (Google Auth platform → Branding / Audience in newer consoles).
2. User type External (or Internal if every user is in one Google Workspace).
3. Set app name, support email, logo, and your privacy policy and terms links.
4. Scopes: openid, email, profile (sign-in) and https://www.googleapis.com/auth/drive.file (data consent). No other scope is requested.
5. Publish the app to In production. Google may require app verification before ordinary users can consent.

3. OAuth client

1. APIs & Services → Credentials → Create credentials → OAuth client ID, type Web application.
2. Authorized JavaScript origins: your AEVU web address (<your AEVU app URL>), needed by the Picker.
3. Authorized redirect URIs: add both, using your public API address:

<your AEVU API URL>/api/auth/google/callback
<your AEVU API URL>/api/integrations/oauth/google/callback

The first serves sign-in and profile linking; the second serves data consent. They must match exactly, scheme and host included.

4. Copy the client ID and client secret.
5. Credentials → Create credentials → API key. Restrict it to the Picker API and your web origin. Note the Cloud project number (the Picker app ID).

4. Server configuration

Set these in the API's configuration (environment variables use double underscores, for example PMO__Google__ClientId). Never put them in a committed file.

Key	Use
Google:ClientId, Google:ClientSecret	The OAuth client. The secret stays on the server.
Google:PublicApiBaseUrl	Your public API address; the two callbacks above are built from it
Google:PublicWebBaseUrl	Where callbacks send the browser back in the web app
Google:PickerApiKey, Google:PickerAppId	The Picker's public key and project number. Without them the Picker answers integration.notConfigured
Google:SignInHostedDomains	Optional. When set, only Google Workspace accounts on those domains may sign in

The platform must also offer the capabilities (Platform:AvailableCapabilities): Google sign-in, Sheets, Drive links and Chat (and the Microsoft links and Teams capabilities) are not on by default.

For organisation and workspace admins

1. Organization → Integrations: switch on the Google capabilities you want (Sign in with Google, Import from Google Sheets, Google Drive file links, Google Chat notifications) and tick each workspace allowed to use Google. Importing from Sheets and Drive links need a plan that includes Google (Team and above); Google Chat notifications need a plan with channel notifications (Team and above); Sign in with Google needs no plan entitlement.
2. Settings → Connections → Integrations for this workspace: keep the same switches on.

For each person

Connect your Google account

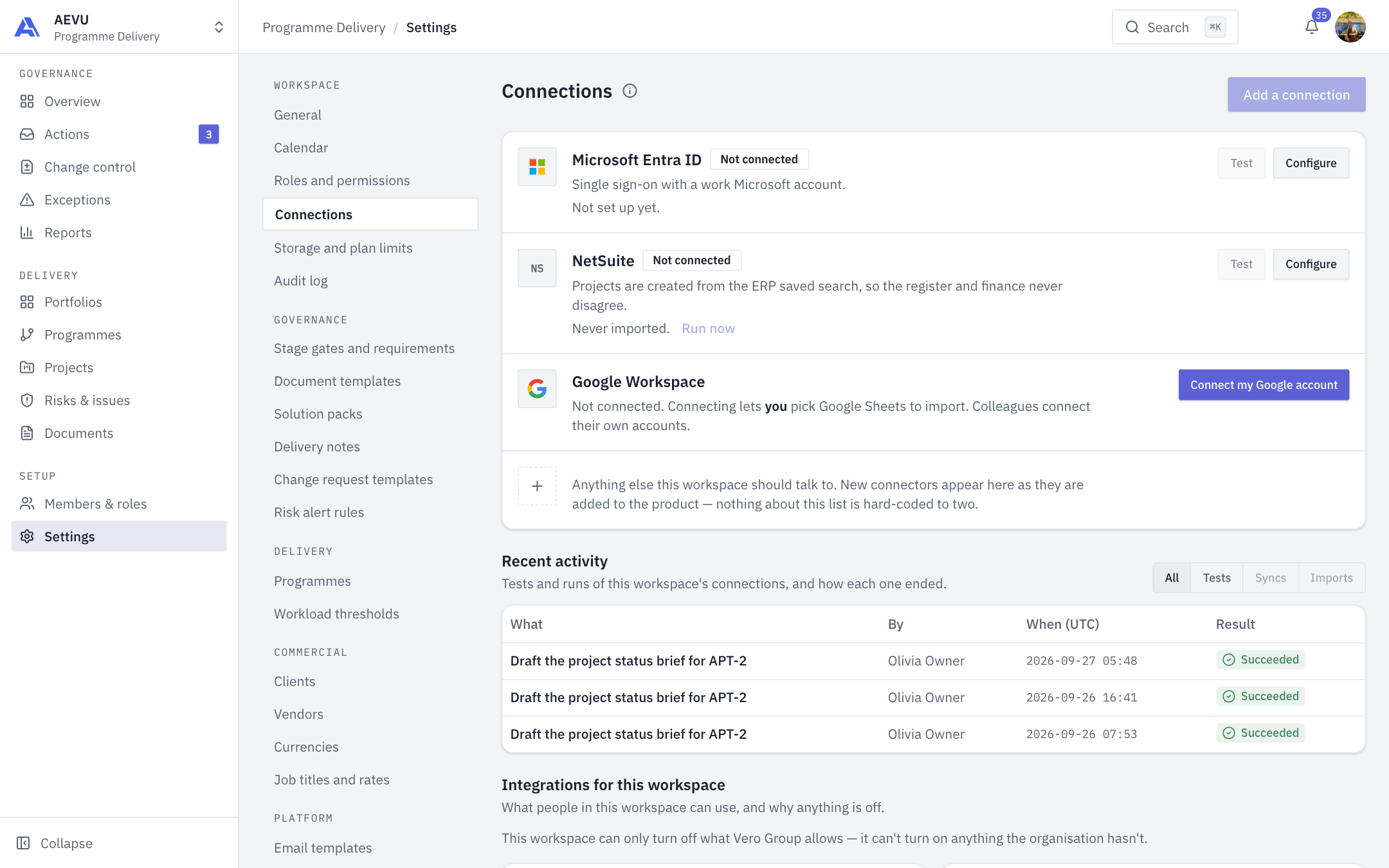

1. Open Settings → Connections (or use the connect option inside the import wizard if you cannot open Connections).
2. On the Google Workspace row select Connect my Google account.
3. Read the explanation, then continue to Google and approve access to the files you pick.

The connection belongs to you in this workspace. Colleagues connect their own. Status reads Connected as …, Reconnect required or Not connected. Disconnect is always available.

Partial consent stores nothing

If you untick a permission on Google's consent screen, no connection is saved. Connect again and accept it.

Sign in with Google

1. On Profile, in the Google account card, choose Link Google. You need a recent sign-in (within 10 minutes), otherwise choose Sign in again.
2. Afterwards use Continue with Google on the sign-in page.

Unlinking signs you out of every session, including the one you unlink from. A Google account nobody has linked lands on "not linked".

Import a Google Sheet

In the import wizard choose Google Sheet, select Pick a Google Sheet and choose the file in Google's Picker, choose the worksheet, then map columns as for any file (see Importing from spreadsheets). AEVU reads one snapshot of at most 5,000 data rows and 100 columns, using the values shown in the cells (never formulas).

Link a Drive file

In a project's Documents choose Add external link, open the Pick from Google Drive tab and select Pick a file. AEVU stores a title and address only; it never reads the file.

Export to Google Sheets

Report Export, format New Google Sheet, creates a new sheet in your own Drive. It never writes into a sheet you already had. See Exports.

Common errors

Code or message	Meaning and fix
integration.notConfigured	Platform operator has not set the Google client or Picker key
integration.connectRequired	You have not connected Google in this workspace
integration.reconnectRequired	Google refused your saved access. Select Connect again
integration.scopeMissing	Your connection lacks the needed permission. Reconnect and accept every box
google.fileNotAccessible	Your Google account cannot open the picked file (or it was deleted)
provider.unavailable	Google timed out. Try again
google.accountNotLinked	Link Google from Profile first
google.signInNotAllowed	The organisation or workspace has Google sign-in off, or your account is inactive
domain.notAllowed	Your Google account's domain is not in the allowed list
google.accountLinkedElsewhere	That Google account already opens another AEVU account
auth.recentSignInRequired	Sign in again, then retry linking

Security

• Tokens are encrypted at rest and never returned to the browser. The Picker's short-lived token lives only in memory.
• Revoking a connection removes its tokens and cancels your queued Google exports.
• The browser that starts a Google round trip must be the one that finishes it.
